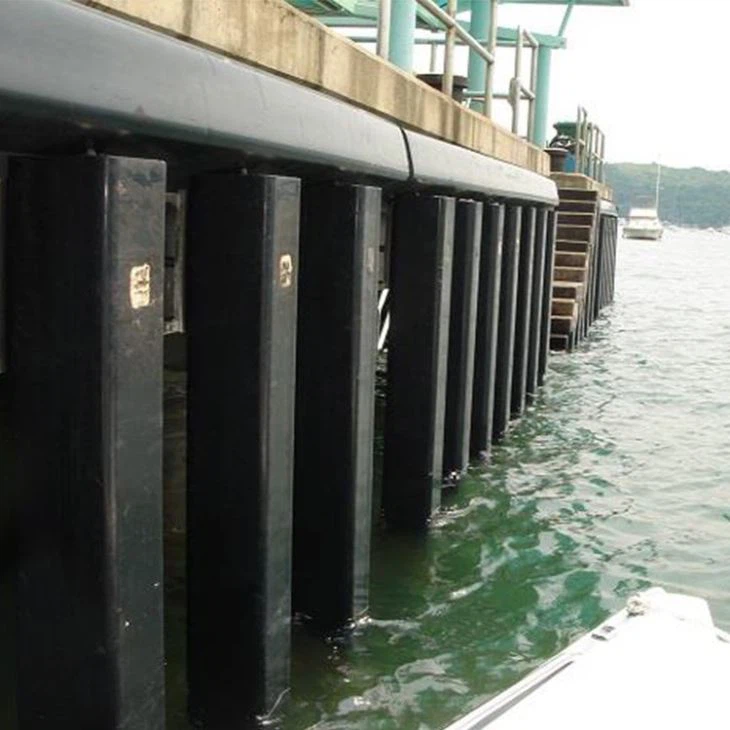

Square Rectangle type fenders are used for tugs, barges, work boats and pilot boats as side belting and protective fenders against heavy Rubbing, Impact, Brushing and Pushing force. These square type fenders having a higher energy absorption capacity so minimizing the face contact.

Αποστολή ερώτησής

Chat τώρα

Εισαγωγή προϊόντος

Extruded fenders are simple rubber profiles, usually attached with bolts to the structure. Extrusions can be made in virtually any length then cut and drilled to suit each application. Pre-curved sections and special sizes are available on request. Usually black in colour, extruded fenders can also be supplied in creamy white as an option.

Features

1. Inland water ways

2. Work boats and service craft

3. The smaller jetty and wharf

4. Easy and quick installation

Specifications

GSC RUBBER FENDERS
Fender size	A	B	ØC	ØD	E	F	G	H	Flat bar	Bolt size	Weight
GSC100	100	100	30	15	25	10	90-130	200-300	50x6	M12	11.4
GSC150	150	150	65	20	30	12	110-150	250-350	60x8	M16	23.6
GSC165	165	125	65	20	30	15	110-150	250-350	60x8	M16	21.3
GSC200	200	200	75	25	45	15	130-180	300-400	80x10	M20	43.8
GSC200	200	200	100	25	40	15	130-180	350-450	80x10	M20	39.5
GSC250	250	200	80	30	45	20	140-200	350-400	90x10	M24	55.3
GSC250	250	250	100	30	50	20	140-200	350-450	100x10	M24	67.2
GSC300	300	250	100	30	50	25	140-200	350-450	100x10	M24	82.6
GSC300	300	300	125	30	60	25	140-200	350-450	110x12	M24	95.6
GSC350	350	350	150	35	65	25	140-200	350-450	120x12	M30	126
GSC350	350	350	175	35	65	25	140-200	350-450	120x12	M30	121
GSC400	400	400	200	35	70	30	140-200	350-450	130x15	M30	158
GSC500	500	500	250	45	90	40	150-230	400-500	150x20	M36	247
units: mm;kg/m

GSD RUBBER FENDERS
Fender size	A	B	C	D	ØE	ØF	G	H	Flat bar	Bolt size	Weight
GSD100	100	100	50	45	30	15	90-130	200-300	40x5	M12	9.9
GSD150	150	150	70	65	40	20	110-150	250-300	50x8	M16	22.7
GSD165	165	125	80	60	40	20	110-150	250-300	60x8	M16	20.3
GSD200	200	150	90	65	50	25	130-180	300-400	70x10	M20	30.8
GSD200	200	200	90	95	50	25	130-180	300-400	70x10	M20	39.8
GSD250	250	200	120	95	60	30	140-200	350-450	90x12	M24	49.4
GSD250	250	250	120	120	60	30	140-200	350-450	90x12	M24	61.1
GSD300	300	250	140	115	60	30	140-200	350-450	100x12	M24	75
GSD300	300	300	125	135	60	30	140-200	350-450	100x12	M24	92
GSD400	400	400	200	200	75	35	140-200	350-450	150x15	M30	153
GSD500	500	500	250	250	90	45	160-230	400-500	180x20	M36	239
units: mm;kg/m

Drawing

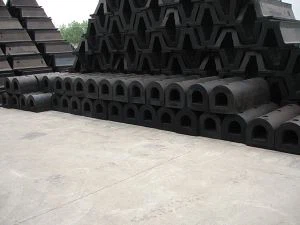

D type fender
